Western Digital WD40NMZW Data Recovery

Zero Alpha offers professional data recovery for Western Digital WD40NMZW. This portable 4TB hard drive is widely used for storing important files, photos, and backups. Users often face problems such as drive not detecting, clicking sounds, or accidental formatting. We provide reliable solutions and accept mail in jobs from any location.

Western Digital WD40NMZW Common Problems

• Drive not detected by computer
• Clicking or beeping sounds
• Slow or freezing performance
• Corrupted partitions or file system
• Accidental deletion or formatting
• Bad sectors or read errors
• Physical damage from drops or impacts

Western Digital WD40NMZW Models

• WD40NMZW-11GX6S1
• WD40NMZW-59GX6S1

Western Digital WD40NMZW-11GX6S1 Data Recovery Caselog

19Mar24: Stiction.

9May24: Clicking. Spins down. MHA Swap.PCB 2060-800041-003 REV P1. Spyglass. NOT SED locked.spins,sounds ok,IDs.slow in some areas. SATA convert with an adapter.Built heads map. Some areas were bad. Drive was exfat. Imaged the drive and scanend in rstudio. Got data back.

Model : WDC WD40NMZW-11GX6S1
Serial : WD-WX51D4818666
Firmware : 01.01A01
Capacity : 4 TB (7 814 037 168)

Family:................................. : SpyGlass 2.5"
Techno mode key......................... : Ok

HDD Status sector....................... : Ok

RAM:
System controller (SoC)................. : 88i1047F0 0x(5450)
HDD Info reading........................ : Ok
Heads number............................ : 10
Cyl Count............................... : 384

ROM:
Read ROM................................ : Ok
ROM Data size........................... : 512 Kb
Flash ROM dir reading................... : Ok
Flash ROM dir reading (Ext)............. : Ok (Active)
Modules directory address............... : 809 245
SA regions address...................... : by default
SA regions address (RAM)................ : by default
Module 02 access........................ : Granted

SA SPT.................................. : 2140

SA Translator loading................... : Ok
SA defects assigned..................... : 2

ROM Modules:
ROM version............................. : 02.1PR
Module 4F F/W version................... : 0002001P
Overlay F/W version..................... : 02.1QR
Servo F/W version....................... : F1.3R

Heads configuration..................... : by map
Heads number............................ : 10
Heads number in use..................... : 10
Switched off heads...................... : No
Heads map............................... : 0,1,2,3,4,5,6,7,8,9

Relocations............................. : 0 (2 459)
Read ROM DCM............................ : Ok

Power up log reading.................... : Ok
Power up load dir data.................. : Yes
Power up load permovl................... : Yes
Power up load CFG data.................. : Yes

Service area:
SA dir reading (ID)..................... : Ok
Dir items loaded........................ : 522

SA Access............................... : Copy 0,Copy 1

Configuration reading................... : Ok
CFG tech mode lock...................... : No
Self encryption drive................... : No
Master Password......................... : has not been set
User Password........................... : has not been set
UA writing.............................. : Granted

DCM in module 47........................ : J6
DCM in module 0A........................ : |W|MJ6DHMC
DCM in module 02........................ : S|BWL|PMMJH6CDRHVMKBUQ

PCB 2060-800041-003 rev p1

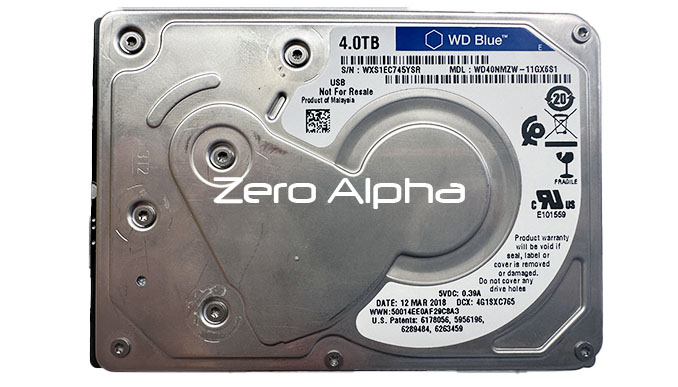

Western Digital Blue Clicking WD40NMZW-11GX6S1 Data Recovery Caselog

16Sep25:Customer brought in a hard drive for data recovery. the hard drive is clicking and making buzzing sounds. PCB # 2060-800041-003 REV P1. The hard drive plastic case is WD My Passport PN: WDBYFT0040BBK-0A. The plastic case had a hole in it,like it was melted.
